Ball screw is a mechanical form of infinite rolling and circulation after installing steel balls into the screw shaft and nut raceway, so as to convert the rotating motion into linear positioning motion. In order to reduce the friction torque generated when the steel ball circulates in the raceway, the linear contact between the screw rod and nut raceway and the steel ball is designed as a point contact structure.

知識點！滾珠絲杠和普通絲杠的區別在哪里?

Knowledge point! What is the difference between ball screw and ordinary screw?

自鎖性：自鎖性一般與傳統效率成反比，傳動效率越高，自鎖性就越小，因此，滾珠絲杠幾乎沒有自鎖性，而普通絲杠（即梯形絲杠）具有一定的自鎖性。

Self locking: self locking is generally inversely proportional to the traditional efficiency. The higher the transmission efficiency, the smaller the self-locking. Therefore, the ball screw has almost no self-locking, while the ordinary screw (i.e. trapezoidal screw) has a certain self-locking.

經濟性：從以前和目前的情況來看，滾珠絲杠因其結構較梯形復雜，仍然比梯形絲杠高。不過，隨著自動化設備的增多而產量大，差異越來越小。

Economy: from the previous and current situation, the price of ball screw is still higher than that of trapezoidal screw because its structure is more trapezoidal and complex. However, with the increase of automation equipment and large output, the price difference is becoming smaller and smaller.

傳動速度：滾珠絲杠是滾動摩擦，梯形絲杠是滑動摩擦，工作時前者的溫升遠低于后者，因此可以承擔高速傳動任務。

Transmission speed: the ball screw is rolling friction and the trapezoidal screw is sliding friction. When working, the temperature rise of the former is much lower than that of the latter, so it can undertake the task of high-speed transmission.

使用壽命：滾動摩擦的表面損傷比滑動摩擦的小很多，因此在清潔、潤滑等條件符合時，滾珠絲杠的維持壽命比梯形絲杠高得多。

Service life: the surface damage of rolling friction is much smaller than that of sliding friction. Therefore, when the cleaning, lubrication and other conditions are met, the maintenance life of ball screw is much higher than that of trapezoidal screw.

傳動效率：滾珠絲杠由于滾動絲杠副的絲杠軸與絲杠螺母之間有很多滾珠在做滾動運動，所以運動效率高。

Transmission efficiency: the ball screw has high movement efficiency because there are many balls rolling between the screw shaft of the rolling screw pair and the screw nut.

以上就是為大家介紹的有導軌絲杠的詳細介紹,希望對您有所幫助.如果您有什么疑問的話,歡迎聯系我們.我們將以的態度,為您提供服務http://www.zsdress.com

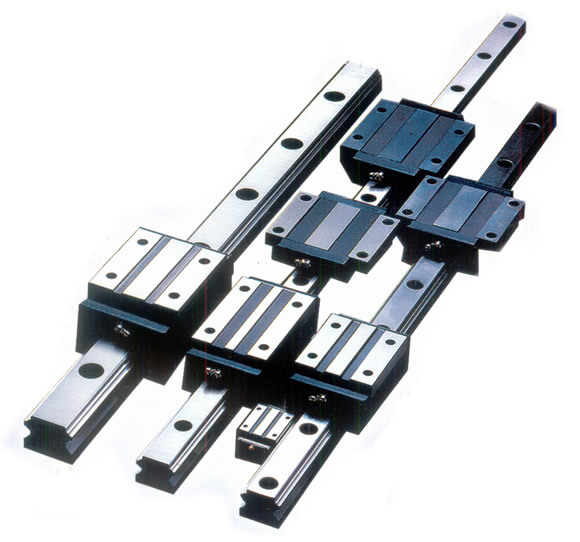

The above is the detailed introduction of guide rail and lead screw. I hope it will be helpful to you If you have any questions, please contact us We will provide you with professional service http://www.zsdress.com
