在工業機床的腹腔中，在機器人靈活的關節里，在3D打印機精密的傳動系統中，隱藏著兩對默契的搭檔——導軌與絲杠。它們如同機械世界的軌道與琴弦，一剛一柔，一靜一動，共同譜寫著現代工業的精密樂章。

　　In the abdominal cavity of industrial machine tools, in the flexible joints of robots, and in the precise transmission system of 3D printers, there are two pairs of tacit partners hidden - guide rails and lead screws. They are like the tracks and strings of a mechanical world, one rigid and one flexible, one static and one dynamic, together composing the precise symphony of modern industry.

　　導軌：機械運動的“隱形高速公路”

　　Guide rail: the "invisible highway" of mechanical motion

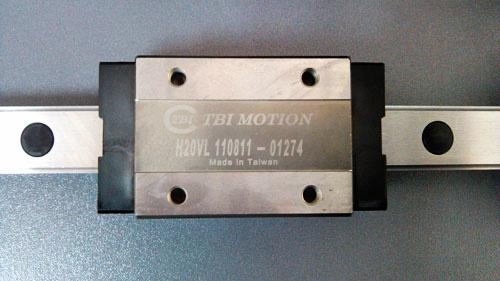

　　導軌是機械設備的“運動脈絡”，為運動部件提供精確的導向軌跡。想象一下，如果把機床工作臺比作在賽道上飛馳的賽車，那么導軌就是那條精心打磨的賽道。它通常由高強度合金鋼或不銹鋼制成，表面經過淬火、磨削等工藝處理，平整度可達微米級，相當于一根十米長的導軌，表面起伏不超過頭發絲的十分之一。

　　The guide rail is the "movement network" of mechanical equipment, providing precise guiding trajectories for moving parts. Imagine if the machine tool worktable were compared to a racing car speeding on a track, then the guide rail would be the meticulously polished track. It is usually made of high-strength alloy steel or stainless steel, and its surface is treated with quenching, grinding and other processes, with a flatness of up to micrometers, equivalent to a ten meter long guide rail, and the surface roughness does not exceed one tenth of a human hair.

　　導軌的截面形態暗藏玄機。矩形導軌如同穩固的城墻，承受重載時巋然不動；燕尾形導軌似靈動的燕尾，兼具導向與自鎖功能；圓柱形導軌則像旋轉的舞者，將滑動摩擦轉化為滾動摩擦。某高端數控機床采用的液體靜壓導軌，在工作臺與導軌間形成0.01毫米的油膜，既實現無摩擦運動，又能承載數十噸的重量。

　　The cross-sectional shape of the guide rail hides mysteries. The rectangular guide rail is like a stable city wall, standing firm when subjected to heavy loads; The swallowtail shaped guide rail resembles a flexible swallowtail, with both guiding and self-locking functions; The cylindrical guide rail is like a rotating dancer, converting sliding friction into rolling friction. The liquid static pressure guide rail used in a high-end CNC machine tool forms a 0.01mm oil film between the worktable and the guide rail, which not only achieves frictionless motion but also can carry tens of tons of weight.

　　絲杠：精密傳動的“魔法螺旋線”

　　Screw: the "magic spiral" of precision transmission

　　絲杠是將旋轉運動轉化為直線運動的“魔法師”。它的核心是那條螺旋形溝槽，當電機驅動絲杠旋轉時，嵌在溝槽中的螺母就像沿著螺旋梯拾級而上的舞者，將扭矩轉化為精確的直線位移。這種轉化精度可達0.001毫米，相當于人類頭發絲直徑的七分之一。

　　The screw is a 'wizard' who converts rotational motion into linear motion. Its core is the spiral groove, and when the motor drives the screw to rotate, the nut embedded in the groove acts like a dancer climbing up a spiral ladder, converting torque into precise linear displacement. This conversion accuracy can reach 0.001 millimeters, equivalent to one seventh of the diameter of a human hair.

　　絲杠的“牙齒”暗藏精密哲學。梯形絲杠的齒形如階梯般穩健，適用于普通傳動；滾珠絲杠則讓鋼珠在螺旋溝槽中循環滾動，將滑動摩擦降低80%，使高速進給成為可能；行星滾柱絲杠更像微型機械軍團，多個滾柱圍繞絲杠旋轉，實現超大承載與超高精度的統一。某航天機構研發的衛星天線驅動裝置，采用特殊涂層的滾珠絲杠，在真空環境中十年運轉的磨損量不超過0.05毫米。

　　The "teeth" of the lead screw conceal a precise philosophy. The tooth shape of the trapezoidal screw is as stable as a step, suitable for ordinary transmission; Ball screws allow steel balls to circulate and roll in spiral grooves, reducing sliding friction by 80% and making high-speed feeding possible; The planetary roller screw is more like a miniature mechanical army, with multiple rollers rotating around the screw to achieve a perfect unity of ultra large load capacity and ultra-high precision. The satellite antenna drive device developed by a certain space agency uses specially coated ball screws, and the wear and tear during ten years of operation in a vacuum environment does not exceed 0.05 millimeters.

　　黃金搭檔的精密共舞

　　The precise dance of the golden partner

　　導軌與絲杠的組合，堪稱機械設計的經典范式。在數控加工中心，滾珠絲杠驅動工作臺沿直線導軌做進給運動，導軌承受切削力保證方向，絲杠實現精準位移，兩者配合使加工精度達到微米級。這種關系如同小提琴的琴弓與琴弦：導軌是琴弓，確定運動方向；絲杠是琴弦，將旋轉振動轉化為美妙旋律。

　　The combination of guide rails and lead screws is a classic paradigm in mechanical design. In a CNC machining center, a ball screw drives the worktable to perform feed motion along a linear guide rail. The guide rail bears cutting force to ensure direction, while the screw achieves precise displacement. The combination of the two enables machining accuracy to reach the micrometer level. This relationship is like the bow and strings of a violin: the guide rail is the bow that determines the direction of movement; The lead screw is a string that transforms rotational vibrations into beautiful melodies.

　　在機器人關節處，交叉滾子導軌與行星滾柱絲杠的組合，讓機械臂既能承受重載，又能實現毫米級定位。這種精密配合甚延伸到生物醫療領域：某款手術機器人采用氣浮導軌與超聲波電機驅動的絲杠，使醫生能隔空完成納米級的精準操作。

　　At the joints of the robot, the combination of intersecting roller guides and planetary roller screws allows the robotic arm to withstand heavy loads while achieving millimeter level positioning. This precision coordination even extends to the field of biomedicine: a certain surgical robot uses an air floating guide rail and a screw driven by an ultrasonic motor, allowing doctors to perform precise operations at the nanoscale from a distance.

　　創新延伸：超越傳統的可能

　　Innovation Extension: Beyond Traditional Possibilities

　　工程師們正在探索新型導軌絲杠系統。磁懸浮導軌讓運動部件完全脫離接觸，理論上可實現無限壽命；形狀記憶合金絲杠通過電流控制形變，為微型機器人提供新動力；仿生導軌模仿人體關節結構，用柔性材料實現多自由度運動。這些創新如同在機械樂譜上添加新的音符，不斷拓展著精密傳動的邊界。

　　Engineers are exploring a new type of guide screw system. Magnetic levitation guide rails allow moving parts to completely detach from contact, theoretically achieving infinite lifespan; Shape memory alloy screw provides new power for micro robots by controlling deformation through current; The biomimetic guide rail imitates the structure of human joints and uses flexible materials to achieve multi degree of freedom motion. These innovations are like adding new notes to mechanical music scores, constantly expanding the boundaries of precision transmission.
