在陶瓷雕銑機領域，高剛性導軌絲桿是實現高精度、率加工的核心部件。尤其是在加工高硬度、高脆性的陶瓷材料時，其性能直接決定了加工質量與設備壽命。本文將綜合分析高剛性導軌絲桿的特性與作用，并探討其技術發展趨勢。

　　In the field of ceramic engraving and milling machines, high rigidity guide screw is the core component for achieving high-precision and high-efficiency machining. Especially when processing ceramic materials with high hardness and brittleness, their performance directly determines the processing quality and equipment life. This article will comprehensively analyze the characteristics and functions of high rigidity guide rail screws, and explore their technological development trends.

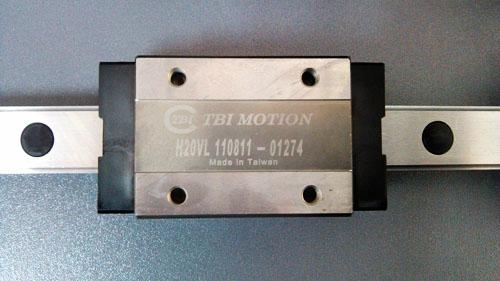

　　高剛性導軌絲桿采用 C3 研磨級滾珠絲桿和 P 級直線導軌，定位精度可達 0.008mm/300mm，重復定位精度控制在微米級。通過預緊技術和精密裝配減少運動間隙，配合閉環控制系統實時補償誤差，確保加工軌跡的精準性。

　　The high rigidity guide rail screw adopts C3 grinding grade ball screw and P-type linear guide rail, with a positioning accuracy of 0.008mm/300mm and a repeated positioning accuracy controlled at the micrometer level. By using pre tightening technology and precision assembly to reduce motion clearance, coupled with a closed-loop control system to compensate for errors in real time, the accuracy of the machining trajectory is ensured.

　　在材質選擇上，絲桿通常采用合金鋼或碳素鋼，導軌則使用表面硬化處理的鑄鐵或聚合物填充床身，兼具高剛性和吸振性。結構上，四導軌支撐系統可提升動態剛性 40%，有效抑制加工振動。

　　In terms of material selection, the lead screw is usually made of alloy steel or carbon steel, while the guide rail uses surface hardened cast iron or polymer filled bed, which combines high rigidity and vibration absorption. Structurally, the four rail support system can increase dynamic rigidity by 40% and effectively suppress machining vibrations.

　　導軌和絲桿表面經精密磨削和硬化處理，搭配不銹鋼盔甲、風琴式防護罩雙重設計，阻隔陶瓷粉塵侵蝕，延長使用壽命。特殊潤滑系統（如自動油路供油）減少摩擦損耗，適應高粉塵工況。

　　The surface of the guide rail and screw rod is precision ground and hardened, paired with a dual design of stainless steel armor and accordion style protective cover to block ceramic dust erosion and extend service life. Special lubrication systems (such as automatic oil supply) reduce friction losses and adapt to high dust conditions.

　　通過滾珠循環技術和低摩擦系數材料，降低運動阻力，支持高速進給（可達 15m/min），同時減少熱量積累。主軸動態平衡技術減少高速旋轉時的振動，提升表面加工質量。

　　By using ball circulation technology and low friction coefficient materials, motion resistance is reduced, high-speed feed (up to 15m/min) is supported, and heat accumulation is reduced. Spindle dynamic balancing technology reduces vibration during high-speed rotation and improves surface machining quality.

　　高剛性結構可有效吸收切削力，避免因振動導致的崩邊、碎裂等問題，尤其適合氧化鋯、碳化硅等脆性陶瓷的精密加工。精密導軌絲桿配合高轉速主軸（如 36000rpm），可實現低溫切削和納米級表面光潔度。

　　High rigidity structures can effectively absorb cutting forces and avoid problems such as edge breakage and fragmentation caused by vibration, especially suitable for precision machining of brittle ceramics such as zirconia and silicon carbide. The precision guide screw, combined with a high-speed spindle (such as 36000rpm), can achieve low-temperature cutting and nanoscale surface smoothness.

　　高剛性設計減少機床變形，降低研磨棒或金剛石刀具的異常磨損，提升刀具耐用性。防護系統防止陶瓷粉末侵入絲桿導軌內部，避免因粉塵堆積導致的精度劣化。

　　High rigidity design reduces machine tool deformation, lowers abnormal wear of grinding rods or diamond cutting tools, and enhances tool durability. The protective system prevents ceramic powder from entering the interior of the screw guide rail, avoiding accuracy degradation caused by dust accumulation.

　　高剛性導軌絲桿支持多軸聯動（如五軸轉臺），滿足復雜曲面加工需求，適用于航空航天、醫療器械等領域的異形陶瓷件生產。模塊化設計允許快速調整導軌布局，適應不同尺寸和材料的加工任務。

　　The high rigidity guide rail screw supports multi axis linkage (such as a five axis turntable), meeting the requirements of complex surface machining and suitable for the production of shaped ceramic parts in aerospace, medical equipment and other fields. Modular design allows for quick adjustment of rail layout to accommodate machining tasks of different sizes and materials.

　　高速進給與快速換刀系統（如傘型刀庫 12 秒換刀）縮短非加工時間，綜合能耗低 2 度 / 小時。智能控制系統優化運動路徑，減少空行程浪費。

　　High speed feed and rapid tool change system (such as umbrella shaped tool magazine with 12 second tool change) shorten non processing time and reduce comprehensive energy consumption to 2 degrees per hour. The intelligent control system optimizes the motion path and reduces the waste of empty travel.
